Nasal Septum



                                                Nasal Septum

                                          PKGhatak, MD

Humans have one nose but two nasal openings called nasal passages. The two passages are separated by a central partition, made up of bony plates and one piece of cartilage. The diagram below shows pieces of bone and one cartilage forming a vertical nasal septum.

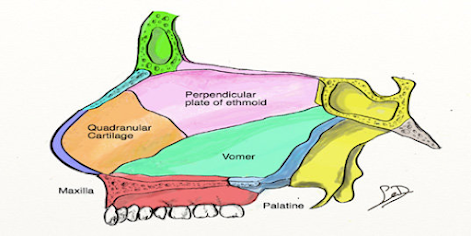

1. perpendicular plate of ethmoid bone (pink)

2. vomer bone. (green)

3. cartilage of the septum (khaki).

4. crest of the maxillary bone. (brown)

5. crest of the palatine bone. (blue)

A CT scan view of the nasal cavity and nasal septum.

How nasal septum developed:

In the early embryonic stage of development, two nose buds (nasal placode) develop from the neural crest. Evolutionary embryology documented how the human nose transformed from an olfactory organ to dual functions of respiration and olfaction through various stages of transformations. In the end, several facial and skull bones participate to form the nose and the nasal septum. The cartilages fill in places where injuries and deformities are likely to take place.

Nostril in other animals.

Sperm whales, dolphins, beluga whales and orcas have one nostril, also called blow hole, the second nostril is modified as an echolocation organ.

Fish use gills for respiration and have 2 to 4 nostrils. One set is used to take in water to a chamber for detection of odor and the other two to discharge water.

Octopuses, crabs and butterflies have no nostrils. Snakes have no nostrils, an opening of the airway called the gullet is located just behind the tongue and is kept closed until the snake swallows air, then directs air to its lungs. Snakes can protrude the gullet to one side of the mouth while swallowing a large prey and at the same time breathe. The snake collects odor molecules from the air by flicking out its tongue repeatedly and when the tongue is retracted into the mouth a special organ located on the palate generates the sense of smell.

Variation of size and shape of the nasal septum.

It is said that people in hot and humid tropical areas have flat, wide noses and a sort nasal septum because for a given amount of air, the oxygen content is lower than what is present in a cold climate. As a result, a larger amount of air is necessary and a wide short nose is more situated for such a purpose. In a cold climate, the air has to be warmed up to body temperature quickly. A higher nasal bridge and a larger nasal septum increase the surface area and warm up the air in a shorter time.

Embryology:

Nasal septum development is a part of the development of the face. It is difficult to summarize its embryology in a few short sentences. The link below can be used to access a more detailed description.

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7965203/figure/F4/

[Also see the footnote].

Head ectoderm, neural crest and prechordal plate by repeated fusion and separation from a common oral-nasal cavity. The midbrain neural crest migrates below the nasal placode (a plate like thickened epithelial layer) and develops as the lateral nasal process and the forebrain neural crest forms the medial nasal process. As these cavities begin to deepen, a middle ridge appears. This medial ridge develops as the vertical plate of the maxillary bone. Other bones and cartilage follow the same pattern and ultimately a nasal septum comes into shape.

Histology of Nasal Septum.

The nasal septum is about 2 mm thick. Both surfaces of the nasal septum are covered by mucous membrane and the submucous tissue contains blood vessels and nerve tissue. The surface of the mucus membrane is covered by epithelial cells which have 3 different forms. See the diagram below.

At the front end of the septum, the surface is covered by keratinized stratified squamous epithelium. The major portion of the septum is covered by respiratory epithelium which is the pseudo-stratified columnar ciliated epithelium. The uppermost part, below the cribriform plate, is covered by olfactory epithelium. These cells are tall columnar cells and support the olfactory cells.

Olfactory epithelium.

The olfactory epithelium contains Odor sensing neuronal cells and supporting cells basal cells and brush cells.

Olfactory cells. These are bipolar cells, the top part facing the nasal cavity is supplied by hair cells (modified cilia). Its function is to trap odor molecules, helped by watery secretion from glands in the submucosa. From the base of the bipolar cells, the nerve fibrils emerge and the nerve fibers pass through the cribriform plate and make synaptic connections with the Mitral cells of the olfactory bulb.

Supporting cells. These are pseudo-stratified ciliated columnar cells. Functionally cells are of two types. The sustentacular cells and microvillar cells. The sustentacular cell metabolically supports respiratory epithelium. Microvillar cells are endowed with immune functions.

Basal cells divide actively and transform into other cell types, including bipolar nerve cells.

Brush cells. They are columnar cells and have microvilli. Brush cells are general somatic sensory receptor cells of the trigeminal nerve branch of the nose.

Cavernous tissue. Erectile tissue covers the turbinate (overhanging structures of the lateral wall of the nasal cavity), it is also present at the junction of bone with the cartilage. The blood in the cavernous tissues quickly warms air when the artery is dilated by parasympathetic signals.

Blood supply to Nasal Septum.

The nasal septum has a rich blood supply and several arterial branches of both internal and external carotid artery joint together into an arterial plexus. From this plexus, the septum receives its arterial supply. The anterior inferior part of the vestibule (place people put fingertips) is known as Little's area and is the main area of the source of nose bleeds. The four arterial branches that join together to form the Kieselbach plexus are - the Sphenopalatine artery, a branch of the internal maxillary artery which is a branch of the external carotid. The anterior ethmoidal artery, which is a branch of the ophthalmic artery which originates at the circle of Willis, comes from branches of the internal carotid artery. Septal branches of the superior labial artery, a branch of the facial artery. Posterior ethmoidal artery, a branch of the maxillary artery.

Venous drainage.

A submucosal venous plexus drains blood to the Sphenopalatine vein and ophthalmic vein. These veins make a connection with the cavernous sinus of the brain (a potential source of brain infection).

Nerve supply to Nasal Septum. The origin of the Olfactory nerve is stated earlier. The general somatic sensation (pain, pressure, heat & cold) is supplied by the sensory division of the 5th cranial nerve. The ophthalmology branch of the 5th cranial nerve supplies the upper anterior of the septum, maxillary division of the 5th supplies the posterior and inferior part of the septum.

Parasympathetic secretory innervation of nasal glands originates in the parasympathetic nucleus of the 7th nerve, the preganglionic fibers synapse in pterygopalatine ganglion and postganglionic fibers innervate the nasal glands. Stimulation of this nerve dilates blood vessels and increases nasal secretion.

The sympathetic nucleus is present in the Thoracic 1st segment of the spinal cord, preganglionic fibers travel up and make a synaptic connection in the Caudal sympathetic ganglion. Postganglionic fibers travel along blood vessels to reach the nasal glands, Stimulation of this division produces vasoconstriction and relieves congestion.

Lymph drainage of the nasal septum to the posterior deep cervical and submandibular lymph nodes.

Structural abnormalities of the nasal septum.

A common deformity comes from a direct injury to the nose resulting in a fracture of bones of the septum but the cartilage withstands many less severe blows because of its flexibility and side to side mobility. Both congenital and acquired diseases can alter the shape and character of the septum.

Genetic abnormality.

Cleidocranial dystocia is an autosomal dominant trait. It is characterized by short stature, sloping shoulders, absent collar bones and deformed nasal septum.

Down syndrome babies have saddle shaped nose, short neck and protruding tongue and exabit mental developmental delays.

Congenital.

Congenital syphilis produces destruction of nasal cartilage and a saddle nose, frontal bossing and saber shins and many other abnormalities.

Acquired condition.

Relapsing Polychondritis.

It is an autoimmune disease that develops around midlife. Inflammatory destruction of respiratory cartilages, a saddle nose is the common finding.

Cocaine abuse. Cocaine snorting produces ischemia and as a result perforation of the nasal septum develops. Cocaine use causes frequent sinus infections.

Leprosy. Untreated leprosy can destroy cartilage and bones of the face and nose and many other systemic symptoms.

Leishmaniasis. Mucocutaneous sores may erode nasal bones and soft tissue and other areas of the mouth and face leading to many secondary infections.

-------------------------------------------------------------------------------------------

Footnote: -

Root. The uppermost portion of the nose is just below the eyebrows.

Bridge. The part that connects the root to the rest of the nose.

Apex. The tip of the nose.

Nostril. The opening of the nose is also called naris (pleural – nares).

Ala. The side wall of the nostril (pleural – alae).

Philtrum. The part connecting the tip of the nose to the upper lip. It is concave in shape.

**************************************

Ear Drum

                                         Ear Drum

                              PKGhatak, MD

The eardrum is known as the Tympanic membrane (TM). The word Tympanum is a Greek word, it means to beat or strike. The Latin of the eardrum is Myringa and inflammation of the tympanic membrane is known as Myringitis.

The eardrum is about 1 cm in diameter, located at the end of the ear canal, positioned in a slant fashion, the external surface facing downwards and forward looking towards the face.

Structure. It is made of three layers. The outer surface. The middle fibrous portion and the inner surface.

A thin layer of skin tissue covers the outer surface, these cells are stratified squamous keratinized epithelial cells. The middle layer is a tough connective tissue made up mostly of type II and type III collagen and this layer contains blood vessels and nerve fibers. The inner surface is made of cuboidal epithelial cells which are continuous with the lying cells of the middle ear.

Embryology.

In a developing embryo, an invagination of the first pharyngeal groove joins the first pharyngeal pouch. These two layers form the TM. The outer layer is Ectodermal in origin and the inner layer is derived from the Enteroderm. The middle layer is derived from the neural crest, a mesenchyme tissue.

Blood Supply. The TM has two different blood supplies. The blood supply of the outer surface is provided by the deep auricular branch of the Maxillary artery. The inner surface is supplied by the anterior auricular artery which is a branch of the maxillary artery. The posterior part of the inner surface is supplied by the posterior tympanic artery, a branch of the posterior auricular artery.

Nerve supply. The inner and outer surface of the TM is supplied by separate nerves.

The sensory supply of the outer surface. The cranial nerves – the 3^rd (Trigeminal), the 7^th (Facial), the 10^th (Vagus) and the 11^th (Glossopharyngeal) supply different areas of the outer surface.  The inner surface is supplied by cranial nerve 11^th.

Attachment of TM to the bones.

The outer rim of the TM is thick and cartilaginous. That fits snugly with a groove of the mastoid bone; however, the ring is not complete, a segment of the top is devoid of the ring as a result this part is less taught and called pars flaccida.

Bone attachment to TM:

In the middle of the inner surface of TM, the manubrium of the Malleus bone is attached. It pulls the TM inwards and gives it a conical shape; the inner side takes a convex shape and the outer side assumes a concave appearance.

When the TM is observed under direct vision with a scope, the different areas are identified with specific names; a diagram is easier to point this out.

                                              The Tympanic membrane

Protective muscle of the middle ear.

Two small muscles, the tensor tympani, and stapedius muscles protect delicate hearing organs by reflex action. The motor fiber for the Tensor tympani comes from the Trigeminal nerve (motor division) and the Stapedius muscle is supplied by a branch of the facial nerve. Tensor tympani by contracting increases the tension of TM and reduces the amplitude of vibration. Stapedius can disengage the stapedius bone from the oval window of the inner ear in order to protect the delicate sound receptors and the hair cells.

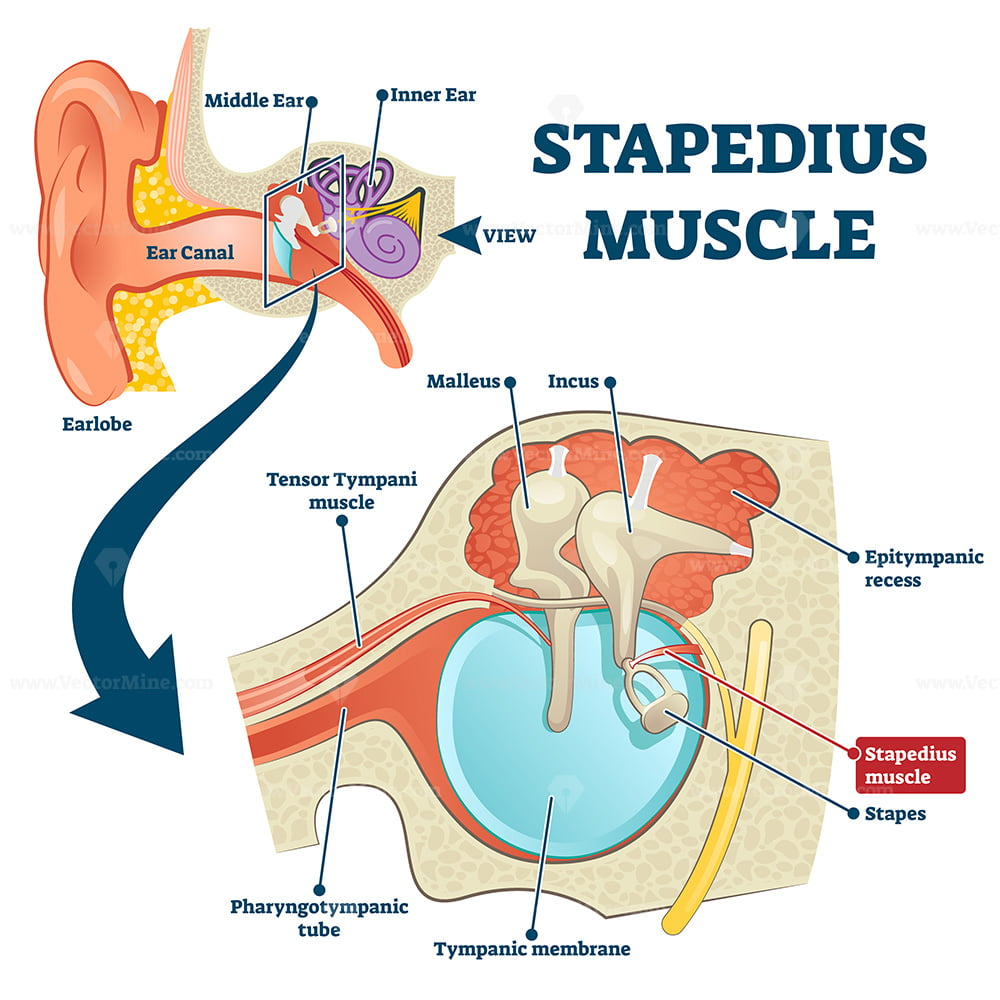

                                       Tensor tympani & Stapedius muscles.

Function of TM.

TM is a physical barrier between the middle ear and the ear canal. It prevents water, darts, dust, small insects,  etc. from getting inside the middle ear.

TM transmits sound waves to the 3 small bones directly, the bones in turn transmit the sound waves to an opening of the bony Cochlea, Oval window and the sound is transferred to the endolymph of membranous cochlea and thereby to the hair cells.

The surface area of TM is 64.3 mm square. The surface area of the Oval window is 1/120 of the surface area of TM. The sound waves are magnified 27 times by the time it reaches the endolymph of the cochlea.

Diseases of TM.

In adults, diseases of TM are not common. Injuries usually result from blast injuries in certain professions using dynamite and in warfare. Inflammation or infection from the ear canal can spread to the TM. Such infections usually develop in swimmers, due to moisture loving bacteria like Pseudonymous or Atypical tubercular bacteria.

In children TM injury or infection is common. Injuries result from improper use of Q-tips. Throat infections rather easily spread to the middle ear and then to TM because the Eustachian tube in children is short and does not drain so easily as in adults.

A few special diseases of TM.

Bullous Myringitis.

Bacteria, Mycoplasma and Virus infections occasionally produce not only acute infection of TM but also produce a fluid filled blister on the TM. Blisters may be hemorrhagic. This was found to be common in Mycoplasma infection, subsequently, bullous lesions are also observed in bacterial and viral infections. Blisters may be hemorrhagic. Myringitis is a painful febrile illness, that often results in perforation of TM and a temporary decrease in hearing.

Swimmer's ear itches.

Cotton from the Q-tip gets dislodged in the ear canal which blocks the drainage path. Stagnant water favors Pseudonymous aeruginosa and Staphylococcus aureus growth. Acute infection later becomes a chronic spreading infection from the TM to the entire external ear.

Swimming pool granuloma. Mycobacterium marinum can cause a chronic ear canal and TM infection, usually from minor wound infection. It produces granulation tissues and damages the tissue if not properly treated.

Ramsey Hans Syndrome. It is an uncommon illness characterized by paralysis of one side of the face and the appearance of a bunch of blisters including on TM due to reactivation of the chicken pox virus, often called shingles. Pain in the ear, loss of hearing on the side of facial paralysis and difficulty in speech and eating are some of the main symptoms.

Cholesteatoma of ear.

Retracted TM or perforated TM left untreated for a long time causes accumulation of dead skin in the inner side of TM and in the middle ear. Occasionally skin grows into a lump or cysts develop. The accumulated wax starts to eat away the bone and recurrent infections lead to osteomyelitis formation of mastoid bone. Fowl smelling discharge, loss of hearing, sensation of fullness of ear and dizziness develop.

Rupture and perforation of TM.

Ruptures are mostly accidental due to sudden blast of air hitting the ear drum in milliseconds before protective reflex action of stampedes muscle can disengage from the Oval window.

Barotrauma. Air pressure of both sides of TM is equal due to a reflex action of swallowing or yawning or clearing the throat. In sudden change of air pressure, like airplane taking a nose drive or loss of cabin pressure and many other situations, the decreased ear canal pressure causes TM to bulge out so suddenly that it actually ruptures.

Perforation of TM. Acute otitis media with large effusion or puss formation in the middle ear pushes TM outward direction and treatment is delayed the TM ruptures and drain puss outside. Other causes of TM perforations are instrumentation, attempts to clean wax using unorthodox methods. Severe head trauma. Deep water diving or Caisson's disease.

Deliberate act. Bajau people of Philippines, Indonesia, Malaysia engaged in deep water hunting, used to deliberate puncture their ear drums so to prevent accidental rupture during deep dive; and miss to earn a living wage for a few weeks.

Retracted ear drums. Retraction of TM is a common occurrence, in most cases pars flaccida is retracted and nearly all resolve spontaneously. Only a few instances the whole TM is retracted and due primarily to pharyngotympanic tube blockage. It is one of the causes of cholesteatoma.

 Cancer of TM:

Cancer of the ear drum is very rare, because of the outer surface is skin, the following cancers are possible- Basal cell ca, Squamosal cell ca, and Melanoma.

The inner surface is the same as the lying membrane of the middle ear, if cancer develops it would be adenocystic ca and adenocarcinoma.

************************************************
